Model specifications & applications

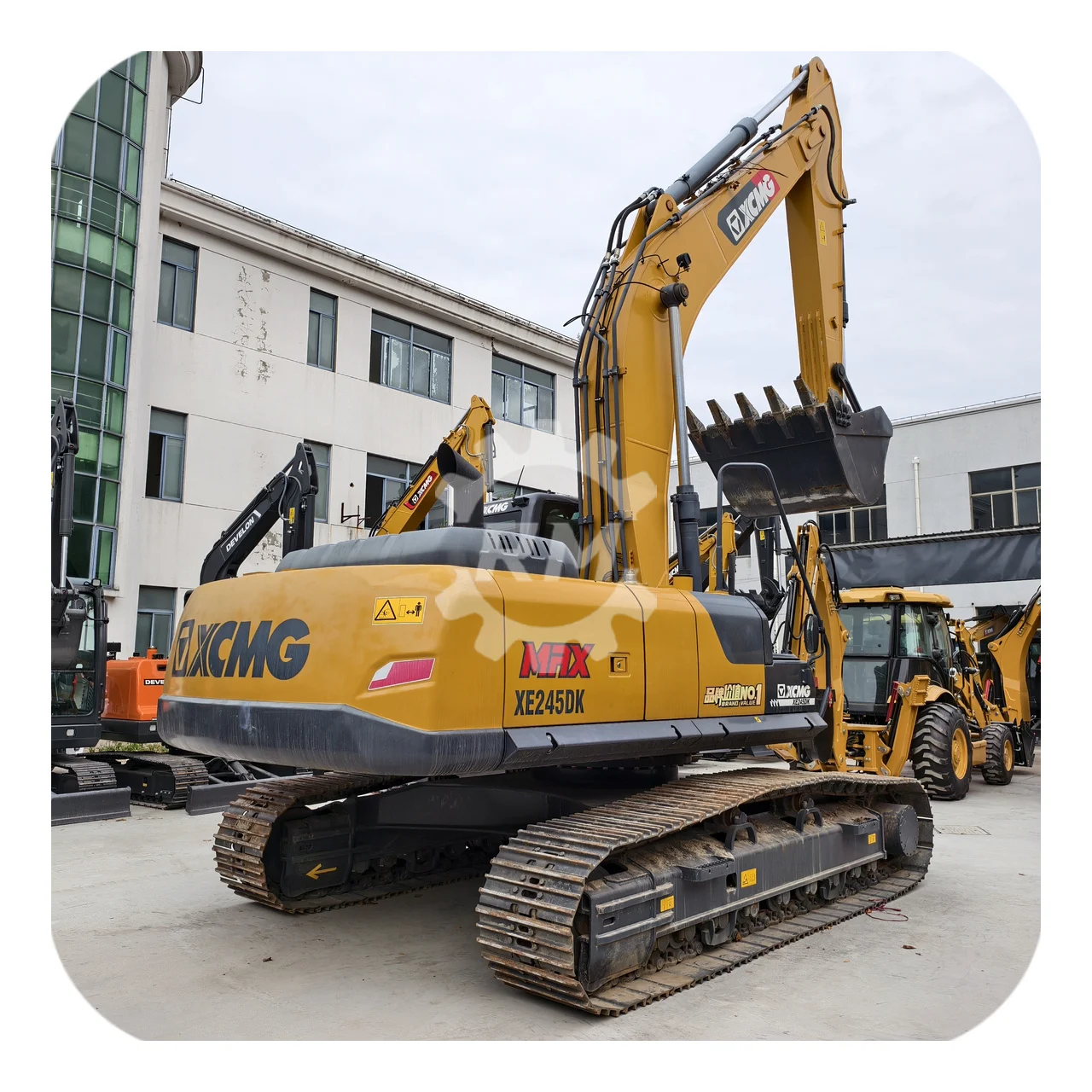

XCMG XE245DK Excavator
Manufacturing dates not verified — see model notes
Model reference only. Photos, year, hours and condition of an offered machine are shown on its separate unit page.
Key specifications
- Operating weight
- 25,500 kg
- Engine
- QSB6.7
- Engine power
- 150 kW at 2050 rpm
- Bucket capacity
- 1.30 m³ (reinforced bucket)
- Transport dimensions
- 10,170 × 3,190 × 3,130 mm (L × W × H)
- Engine displacement
- 6.7 L
- Maximum torque
- 825 Nm at 1250 rpm
- Main pump flow
- 2 × 241 L/min
- Fuel tank
- 400 L
- Boom / arm length
- 6000 / 2964 mm
- Bucket / arm digging force
- 185 / 129 kN
- Maximum digging depth
- 6972 mm
- Maximum digging radius
- 10240 mm
Applications & selection notes
- Quarry aggregate loading
- Infrastructure earthmoving
- Municipal large trenching
Verify the exact model and serial number, engine and hydraulic operation, drive system, work equipment and maintenance records. Confirm actual operating hours, machine condition, attachments and shipping dimensions for the selected unit before ordering.
