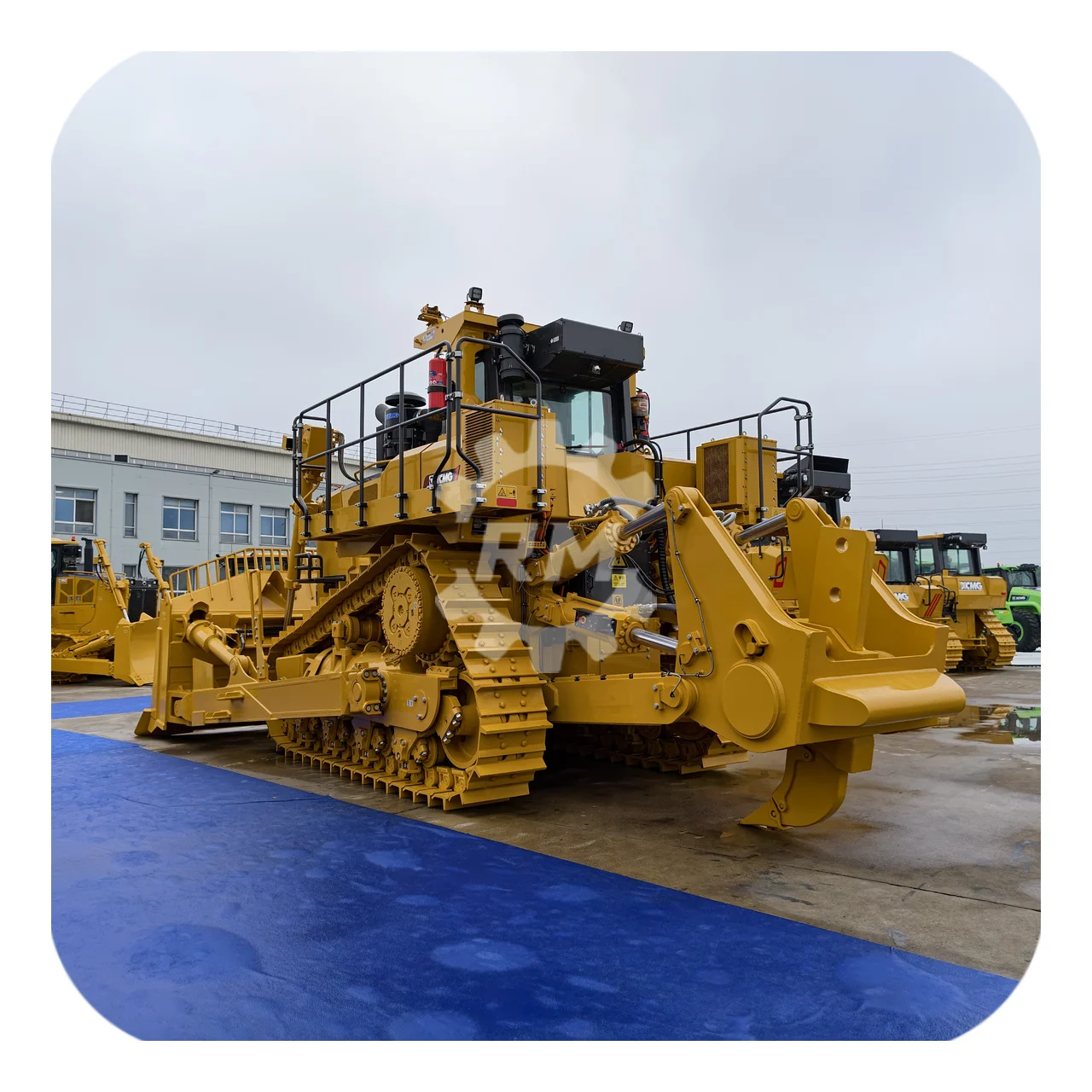

XCMG D760XE Mining Bulldozer

Key specifications

Operating weight

73,000 kg including working device

Engine

QSK19 (EU Stage III global catalogue reference)

Engine power

760 kW at 1,800 rpm (EU Stage III global catalogue reference)

Transport dimensions

9,880 × 5,080 × 4,380 mm (global catalogue reference)

Global reference configuration

EU Stage III; QSK19 engine; 760 kW at 1,800 rpm; 73,000 kg; overall dimensions 9,880 × 5,080 × 4,380 mm.

Global reference ground pressure

145 kPa

Global reference minimum turning radius

5,500 mm

Chinese-market catalogue configuration

2806C engine; manufacturer-published rated power 776 kW; 73,000 kg; overall dimensions 9,880 × 5,080 × 4,340 mm; ground pressure 150 kPa; minimum turning radius 2,561.5 mm. This is a separate catalogue configuration, not combined with the global reference.
