Model specifications & applications

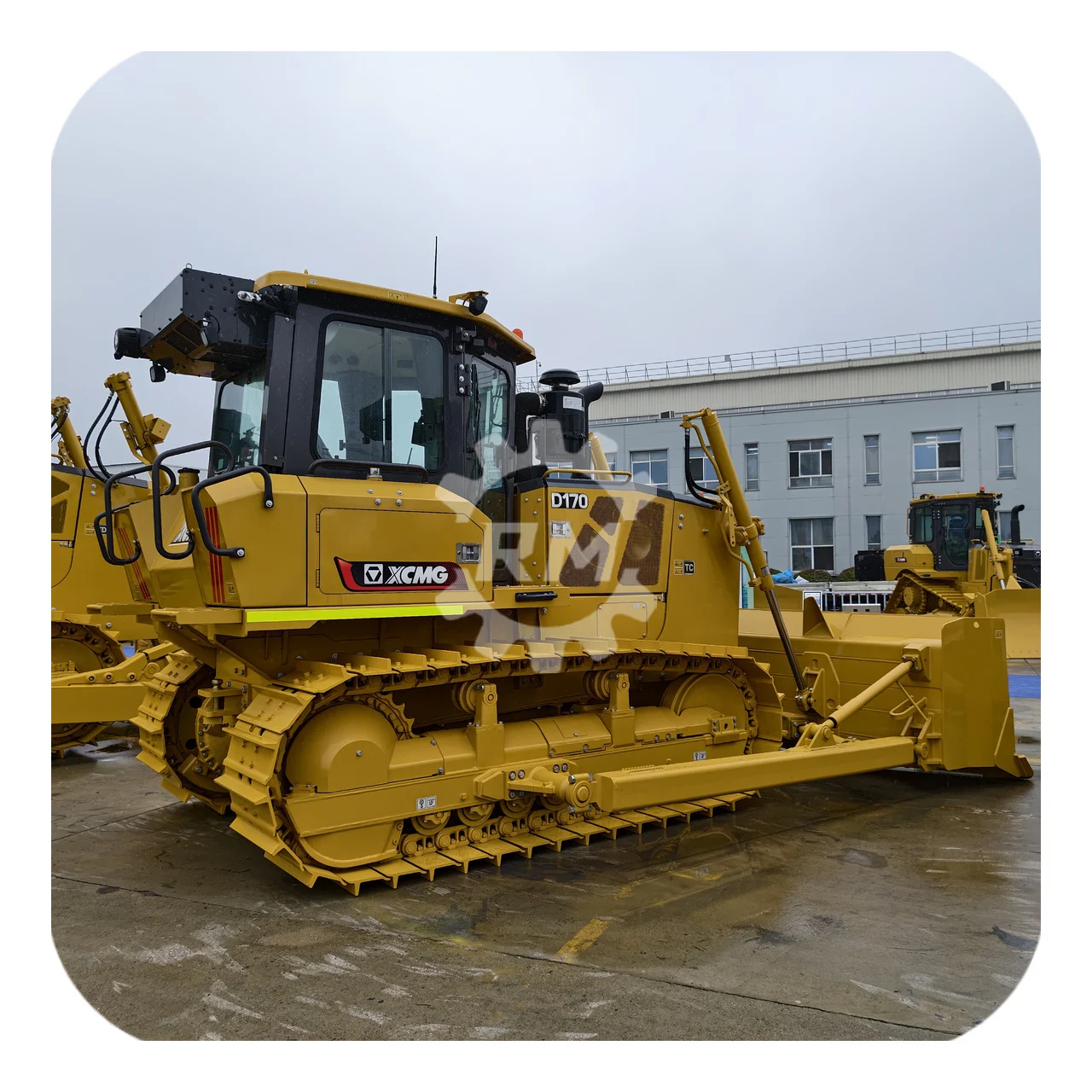

XCMG D170 Bulldozer

D170 family — China Stage IV configurations

2022 – Present (current production verified)

Request price & availability Send requirements Stock alert

Model reference only. Photos, year, hours and condition of an offered machine are shown on its separate unit page.

Key specifications

Operating weight: 18,000 kg (China Stage IV standard configuration)
Engine: Weichai WP9H (China Stage IV reference)
Engine power: 152 kW at 1,900 rpm rated; work modes 120 / 131 / 140 kW
Bucket capacity: 3.5 m³
Transport dimensions: 5,450 × 3,455 × 3,300 mm (China Stage IV standard configuration)
Transmission: Electronically controlled powershift; 3 forward / 3 reverse
Minimum turning radius: 2,800 mm (China Stage IV standard D170)
Emission configuration: China non-road Stage IV (main standard-model reference)
Work-mode power settings: 120 / 131 / 140 kW for light / medium / heavy work (WP9H China Stage IV catalogue)

Notify me when stock arrives

Choose email or manual WhatsApp follow-up for matching machines.

Ground pressure — standard

57 / 52 / 48 kPa across the manufacturer's listed standard configurations; match the installed undercarriage.

Blade control

Hydraulic pilot control

Operator display

8-inch touch LCD (China Stage IV catalogue reference)

D170 standard version

China Stage IV general earthmoving reference: 18,000 kg; Weichai WP9H; 152 kW at 1,900 rpm rated; 5,450 × 3,455 × 3,300 mm. These are the main-page specifications, not the LGP values.

D170 SDEC-engine version

Separate China Stage IV engine option: SDEC SC9DF, 152 kW at 1,900 rpm; 18,000 kg; 5,450 × 3,455 × 3,300 mm; minimum turning radius 2,800 mm. Do not identify its engine as WP9H.

D170 coal-handling version

China Stage IV coal variant: 18,700 kg; Weichai WP9H; 140 kW at 1,900 rpm in the variant table; 6,000 × 3,880 × 3,300 mm; ground pressure 52 kPa; minimum turning radius 2,800 mm. Blade configuration must be confirmed separately.

D170LGP wetland version

China Stage IV low-ground-pressure configuration: 20,400 kg; Weichai WP9H; 140 kW at 1,900 rpm in the variant table; 5,580 × 4,150 × 3,380 mm; minimum turning radius 3,200 mm. Ground pressure and shoe width depend on the listed configuration; LGP does not automatically mean desert equipment.

D170LGP desert version

China Stage IV desert-specific configuration: 20,100 kg; Weichai WP9H; 140 kW at 1,900 rpm in the variant table; 5,580 × 4,150 × 3,380 mm; minimum turning radius 3,200 mm. The manufacturer's desert description specifies radiator sand protection, multi-stage desert air filtration and 950 mm track shoes. Confirm these items on the selected machine.

Applications & selection notes

Road, railway and airport earthworks with the standard configuration.
Ground excavation, backfilling and short-distance pushing of earth and rock.
River-channel and water-conservancy earthworks, with undercarriage selected for ground conditions.
Coal-handling projects using the dedicated coal version.
Soft-ground work using the LGP wetland configuration; desert sand work using the separately specified LGP desert package.

Specify standard, coal-handling, SDEC-engine, LGP wetland or LGP desert when requesting a quotation. Check the complete machine identification, engine code and China non-road Stage IV configuration; similar D170 names do not make the specifications interchangeable. For soft-ground work, confirm the actual track-shoe width and undercarriage. For desert work, confirm the radiator sand screen, desert air-filter arrangement and cooling package on the selected unit; an LGP chassis alone does not prove the desert package is fitted. Confirm blade type and capacity, ripper installation and actual shipping dimensions.
