Model specifications & applications

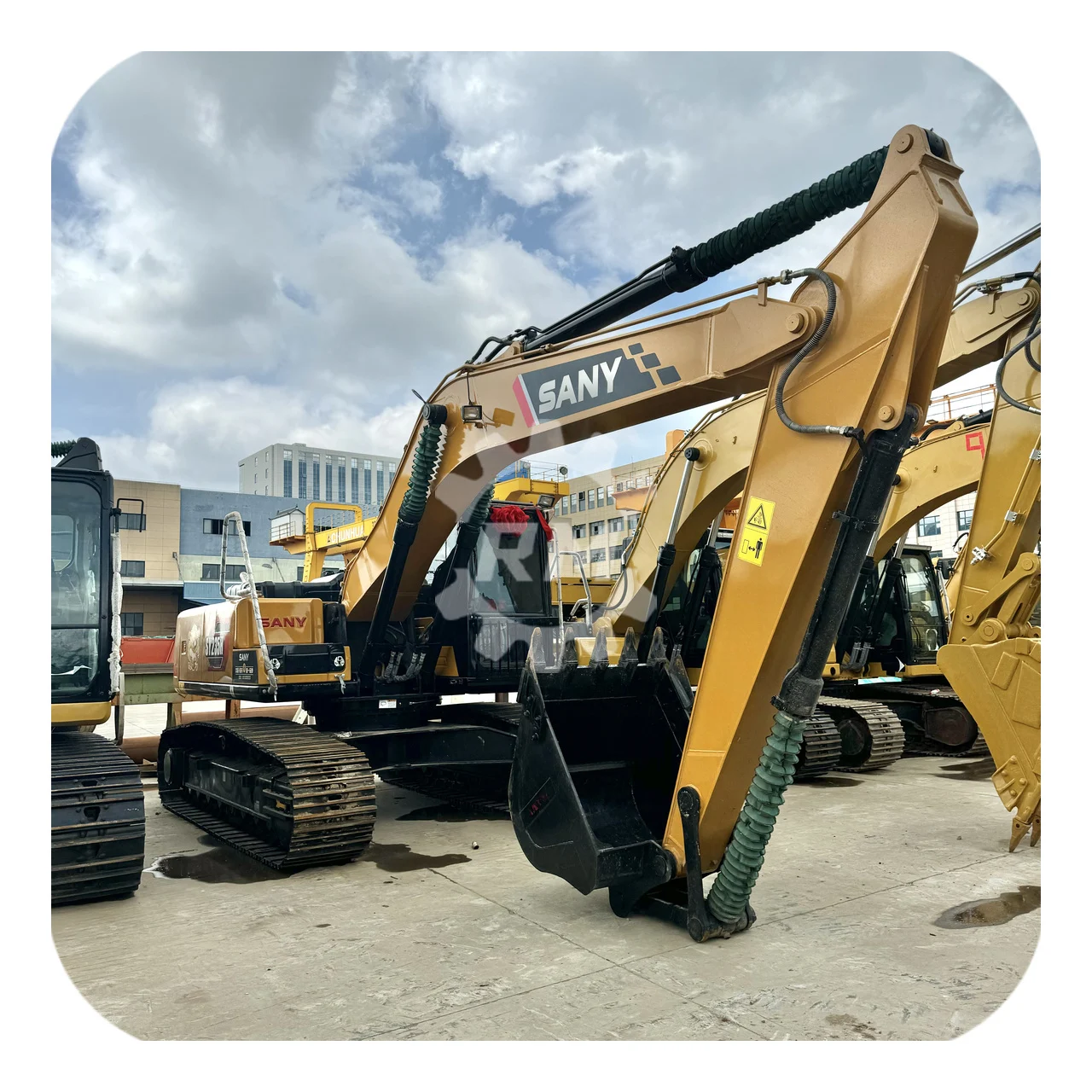

SANY SY235H Excavator
Manufacturing dates not verified — see model notes
Model reference only. Photos, year, hours and condition of an offered machine are shown on its separate unit page.
Key specifications
- Operating weight
- 24,000 kg
- Engine
- Cummins QSB6.7
- Engine power
- 122 kW at 2300 rpm
- Bucket capacity
- 1.25 m³
- Transport dimensions
- 9,635 × 3,180 × 3,288 mm (L × W × boom-transport height)
- Maximum digging depth
- 6450 mm
- Bucket / arm digging force
- 150 / 117 kN
- Cab/ROPS height without guards
- 3170 mm
- Reference track shoe width
- 800 mm
- Engine displacement
- 6.7 L
Applications & selection notes
- Earthmoving
- Quarry operation
- Road construction
Verify the exact model and serial number, engine and hydraulic operation, drive system, work equipment and maintenance records. Confirm actual operating hours, machine condition, attachments and shipping dimensions for the selected unit before ordering.
