Model specifications & applications

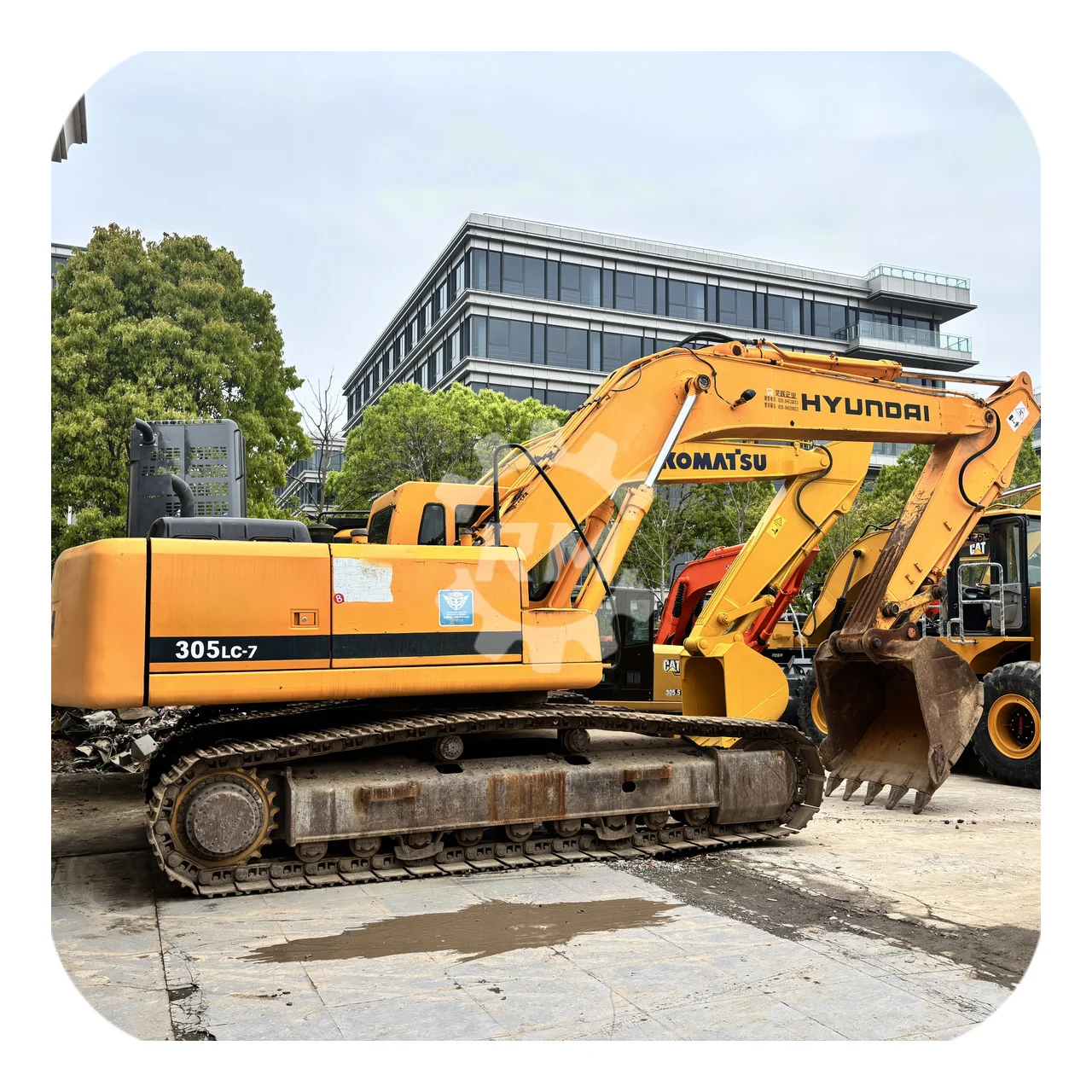

HYUNDAI R305LC-7 Excavator
Manufacturing dates not verified — see model notes
Model reference only. Photos, year, hours and condition of an offered machine are shown on its separate unit page.
Key specifications
- Operating weight
- 29,300 kg
- Engine
- Cummins C8.3-C
- Engine power
- 190 kW / 255 hp gross at 1,900 rpm (SAE J1995)
- Bucket capacity
- 1.27 m³ (PCSA heaped)
- Transport dimensions
- 10,560 × 3,200 × 3,290 mm with standard 600 mm shoes
- Travel speeds, low / high
- 3.1 / 5.2 km/h
- Swing speed
- 11 rpm
- Main pump rated flow
- 2 × 260 L/min
Applications & selection notes
Match the bucket and work equipment to the material and jobsite. Review the engine and emissions configuration for the destination market. Inspect the engine, hydraulics, swing system and undercarriage on the selected used machine.
