Model specifications & applications

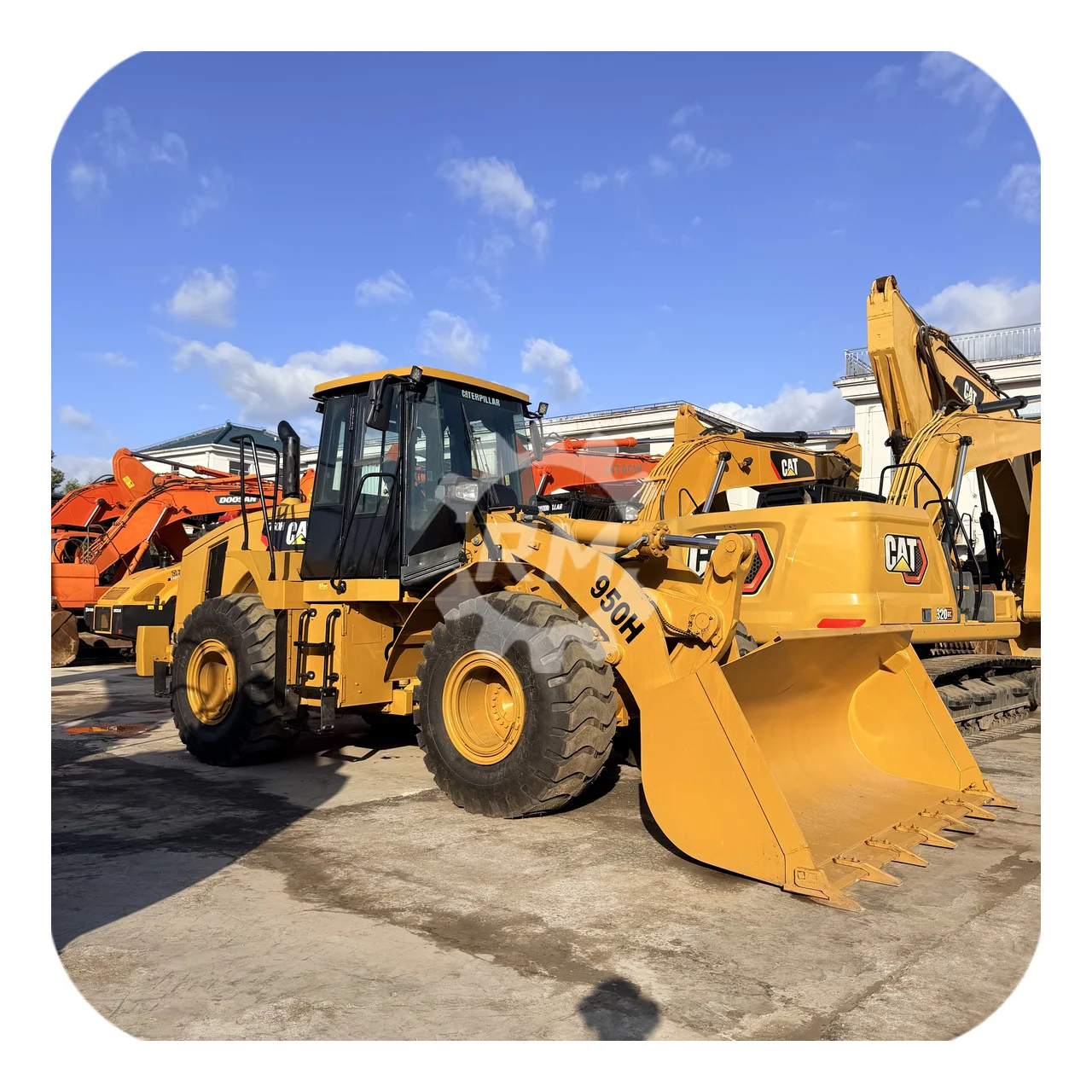

CAT 950H Wheel Loader
Manufacturing dates not verified — see model notes
Model reference only. Photos, year, hours and condition of an offered machine are shown on its separate unit page.
Key specifications
- Operating weight
- 18,320 kg
- Engine
- Cat C7 ACERT
- Engine power
- 147 kW net (ISO 9249 / SAE J1349) at 1,800 rpm; 162 kW gross
- Bucket capacity
- 3.10 m³
- Transport dimensions
- 8,061 × 2,927 × 3,461 mm
- Bucket breakout force
- 150 kN
- Full-turn tipping load (ISO)
- 10,811 kg
- Configuration
- Standard linkage, 3.10 m³ general-purpose pin-on bucket with bolt-on edges, Michelin 23.5R25 XHA2 tires
Applications & selection notes
Verify the exact model and serial number, engine and hydraulic operation, drive system, work equipment and maintenance records. Confirm actual operating hours, machine condition, attachments and shipping dimensions for the selected unit before ordering.
