Model specifications & applications

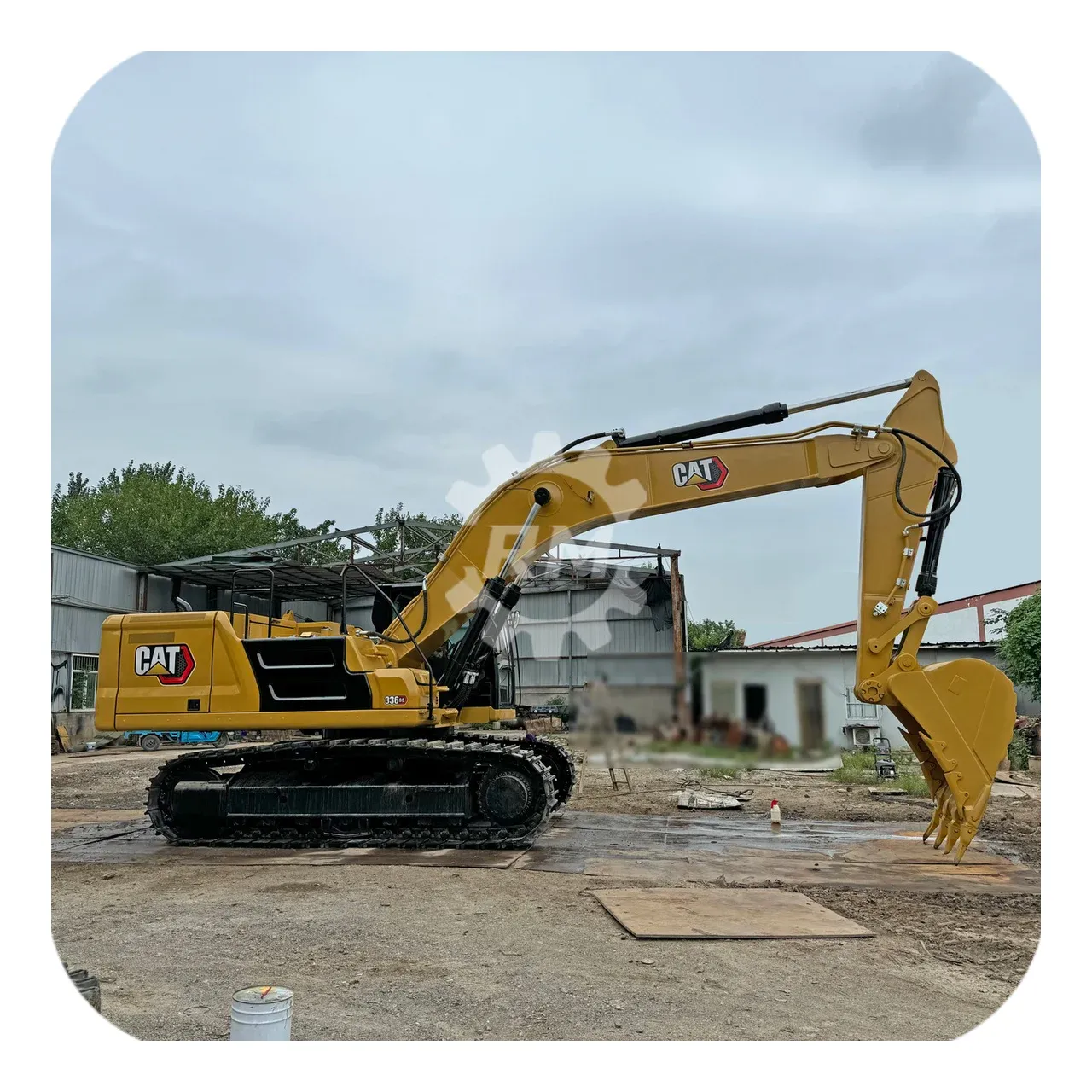

CAT 336GC Excavator
GC Series
2019 – Present (current production verified)
Model reference only. Photos, year, hours and condition of an offered machine are shown on its separate unit page.
Key specifications
- Operating weight
- 33900 kg
- Engine
- Cat C7.1
- Engine power
- 195 kW
- Bucket capacity
- HD 1.88 m³ (2.46 yd³) (reference bucket; attachments vary)
- Transport dimensions
- 11170 × 3190 × 3170 mm (L × W × H; referenced configuration; remeasure fitted attachments before transport)
- Maximum digging depth
- 7520 mm
Applications & selection notes
- Heavy earthmoving and mass excavation
- Quarry and mining support
- Large infrastructure projects
- High-production truck loading
When evaluating a used Caterpillar 336 GC, verify the complete serial number and configuration before comparing specifications. Inspect a true cold start, smoke and blow-by, hydraulic speed under load, main-pump noise, swing bearing play, boom and stick weld areas, bucket linkage, travel performance and final drives. Compare the hour meter with ECM data or service records when available, and measure undercarriage wear rather than relying on appearance. Request dated photos and one continuous operating video. Confirm repainting, repairs, attachments, actual transport dimensions and destination-port requirements for the individual machine before quotation or payment.
