Model specifications & applications

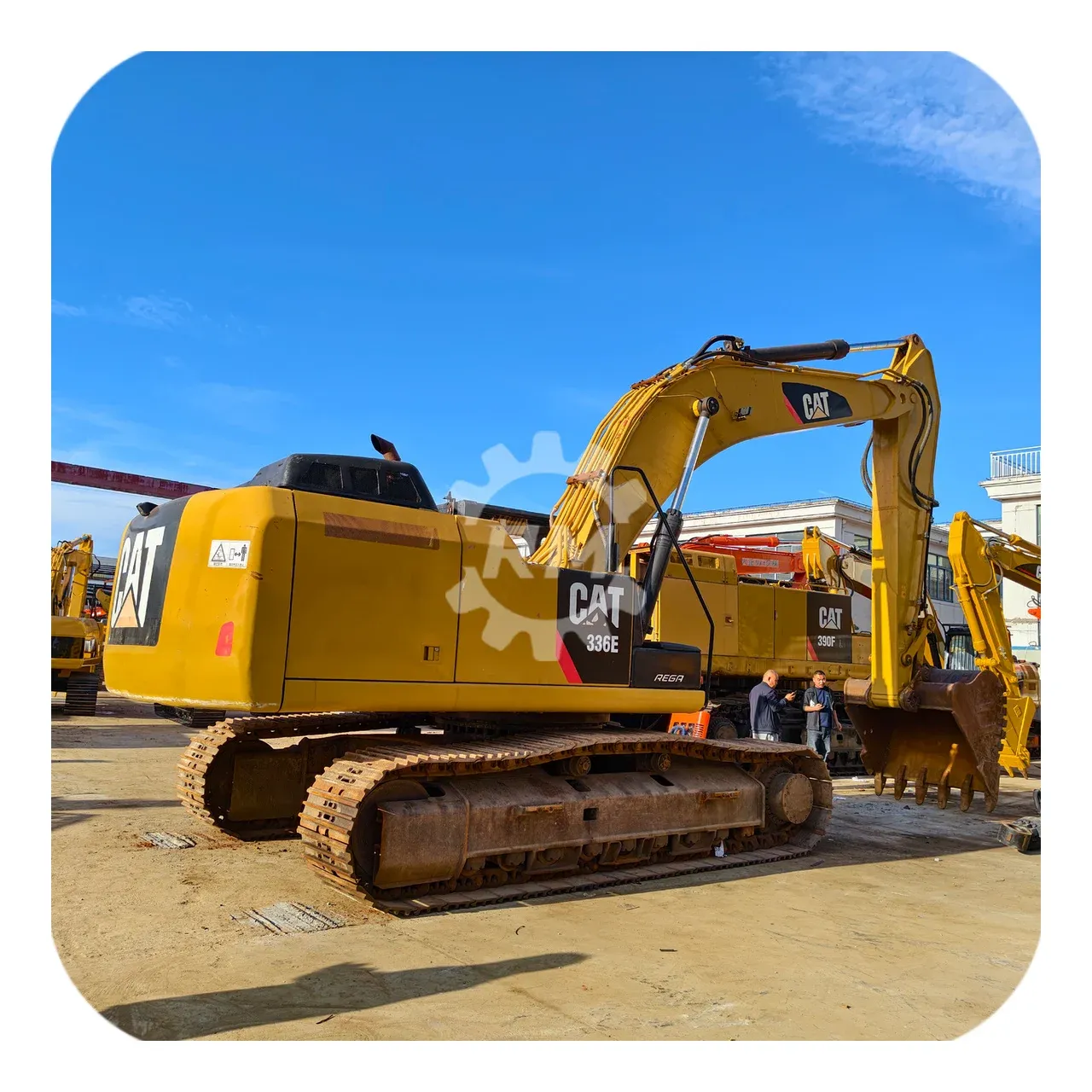

CAT 336E Excavator
E Series
2012 – 2018 (documented configuration)
Model reference only. Photos, year, hours and condition of an offered machine are shown on its separate unit page.
Key specifications
- Operating weight
- 39100 kg
- Engine
- Cat® C9.3 (ATAAC)
- Engine power
- 224 kW
- Generation/configuration matching
- The linked catalog names 336E L. Do not treat this variant as interchangeable with every 336E configuration.
Applications & selection notes
- Heavy earthmoving and mass excavation
- Quarry and mining support
- Large infrastructure projects
- High-production truck loading
When evaluating a used Caterpillar 336E, verify the complete serial number and configuration before comparing specifications. Inspect a true cold start, smoke and blow-by, hydraulic speed under load, main-pump noise, swing bearing play, boom and stick weld areas, bucket linkage, travel performance and final drives. Compare the hour meter with ECM data or service records when available, and measure undercarriage wear rather than relying on appearance. Request dated photos and one continuous operating video. Confirm repainting, repairs, attachments, actual transport dimensions and destination-port requirements for the individual machine before quotation or payment.
