Model specifications & applications

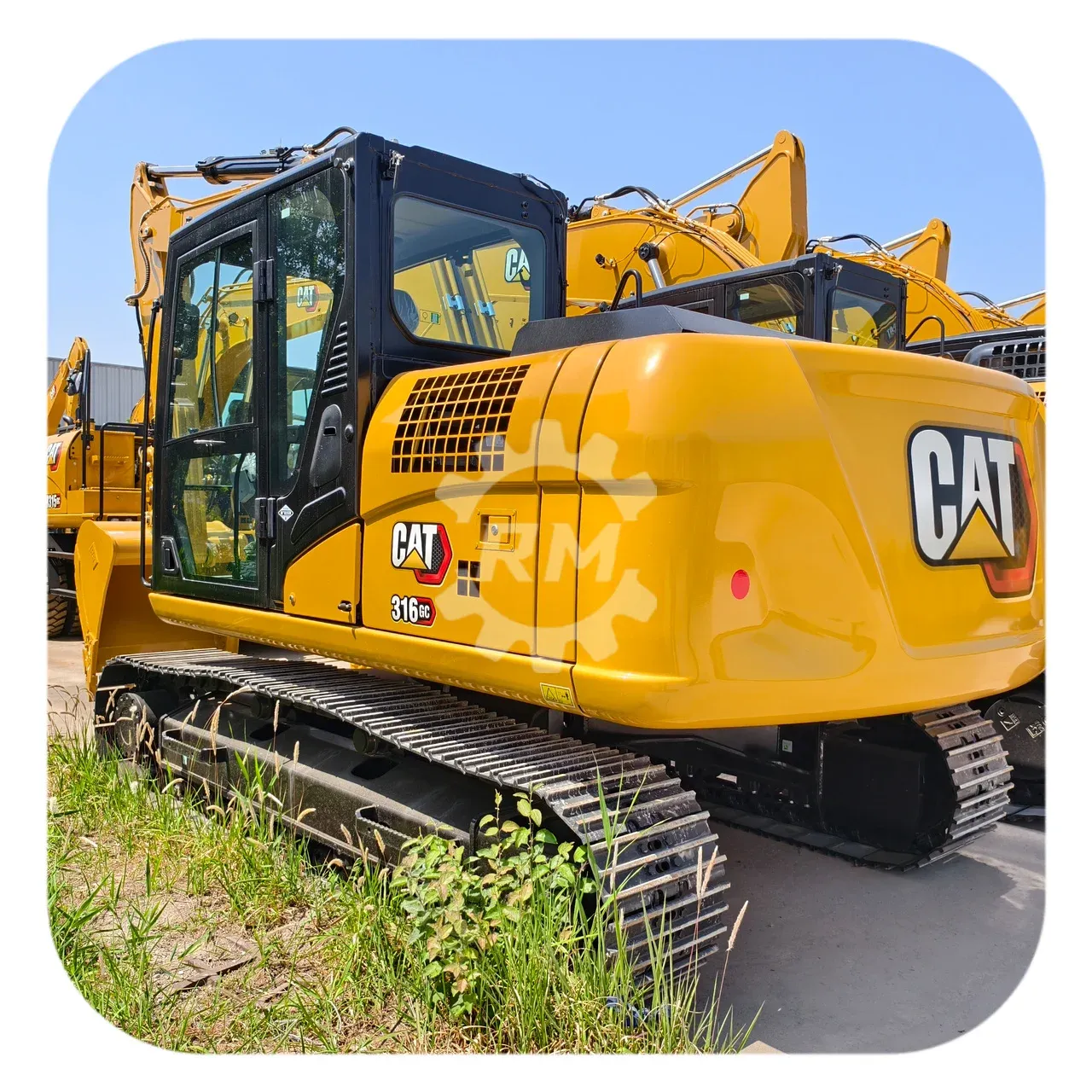

CAT 316GC Excavator
GC Series
2021 – Present (current production verified)
Model reference only. Photos, year, hours and condition of an offered machine are shown on its separate unit page.
Key specifications
- Operating weight
- 14600 kg
- Engine
- C3.6
- Engine power
- 77.3 kW
- Bucket capacity
- 0.65 m³
- Transport dimensions
- 7870 × 2490 × 2790 mm (L × W × H; referenced configuration; remeasure fitted attachments before transport)
- Maximum digging depth
- 5530 mm
- Emissions reference
- Meets Brazil MAR-1 and China Nonroad Stage III emission standards equivalent to U.S. EPA Tier 3 and EU Stage IIIA.
Applications & selection notes
- Urban and residential construction
- Road and utility projects
- Foundation and drainage excavation
- General loading and earthmoving
When evaluating a used Caterpillar 316 GC, verify the complete serial number and configuration before comparing specifications. Inspect a true cold start, smoke and blow-by, hydraulic speed under load, main-pump noise, swing bearing play, boom and stick weld areas, bucket linkage, travel performance and final drives. Compare the hour meter with ECM data or service records when available, and measure undercarriage wear rather than relying on appearance. Request dated photos and one continuous operating video. Confirm repainting, repairs, attachments, actual transport dimensions and destination-port requirements for the individual machine before quotation or payment.
