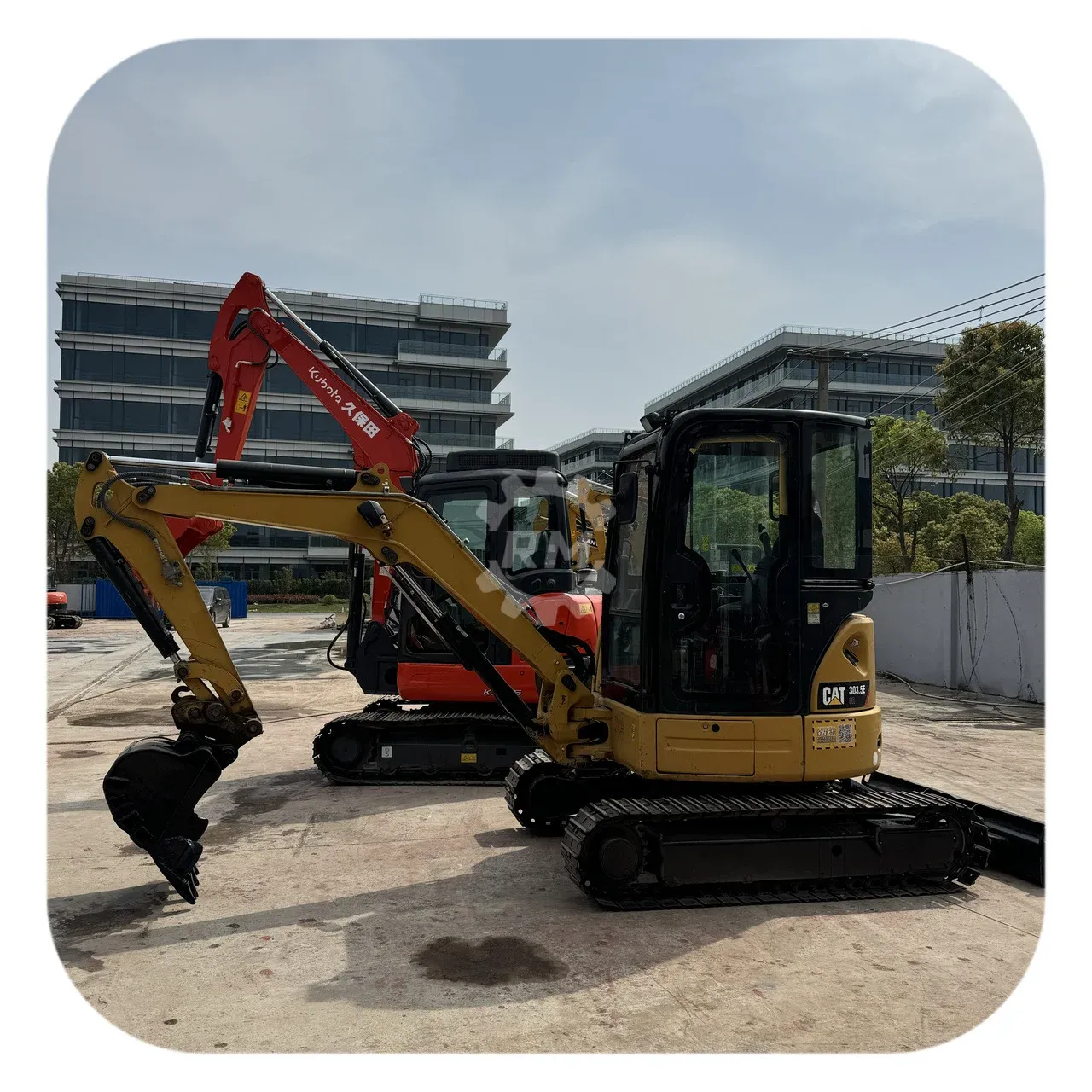

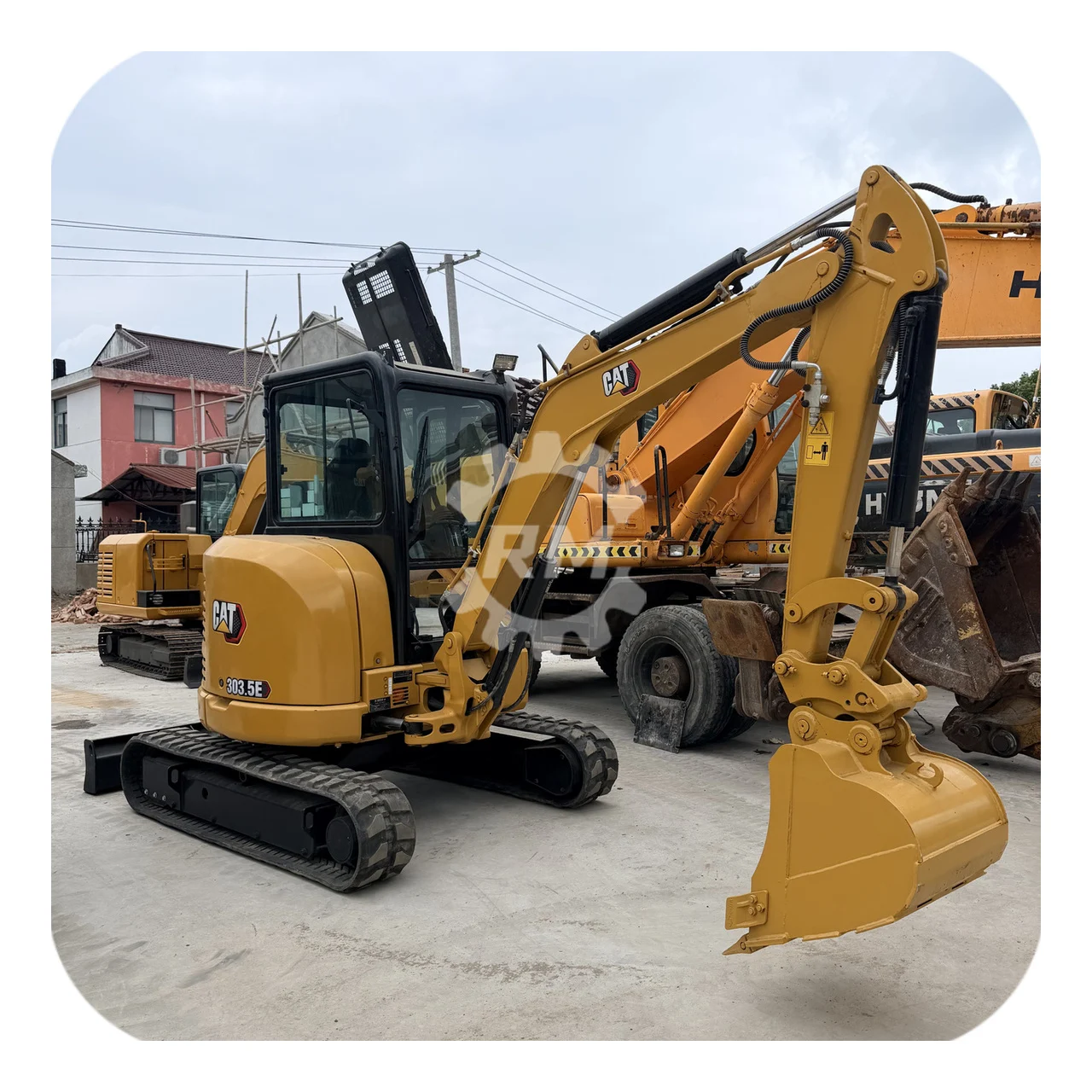

CAT 303.5E Excavator

Key specifications

Operating weight

3508 kg

Engine

Cat® C1.8

Engine power

23.6 kW

Transport dimensions

4730 × 1780 × 2500 mm (L × W × H; referenced configuration; remeasure fitted attachments before transport)

Maximum digging depth

2880 mm

Applications & selection notes

• Utility and drainage trenching
• Landscaping and farm work
• Confined urban construction
• Light demolition with approved attachments

When evaluating a used Caterpillar 303.5E, verify the complete serial number and configuration before comparing specifications. Inspect a true cold start, smoke and blow-by, hydraulic speed under load, main-pump noise, swing bearing play, boom and stick weld areas, bucket linkage, travel performance and final drives. Compare the hour meter with ECM data or service records when available, and measure undercarriage wear rather than relying on appearance. Request dated photos and one continuous operating video. Confirm repainting, repairs, attachments, actual transport dimensions and destination-port requirements for the individual machine before quotation or payment.
